TSL-710, Premium Performance Tunable Laser

Overview

Combining high output power with high signal-to-noise ratio makes the TSL-710 an invaluable tool for optical testing. An innovative external cavity design has been implemented to lower the optical ASE noise, leading to a signal-to-noise ratio of over 90 dB/0.1 nm, while still maintaining a high output power of over +10 dBm. The TSL-710 is available for WDL and PDL measurement with our multi-port power meters (MPM series), a polarization control unit (PCU-100) and dedicated software. (Swept Test System)

Features & Characteristics

Wide tuning range from 1480 to 1640 nm
If you require a different wavelength range, please refer to the TSL-550 which offers more wavelength ranges, with options from 1260 to 1680 nm.

·         High wavelength accuracy: +/- 2 pm

·         High output power: + 13 dBm

·         High signal-to-noise ratio: 90 dB/0.1 nm

·         Narrow linewidth: 100 kHz

- Typical Data -

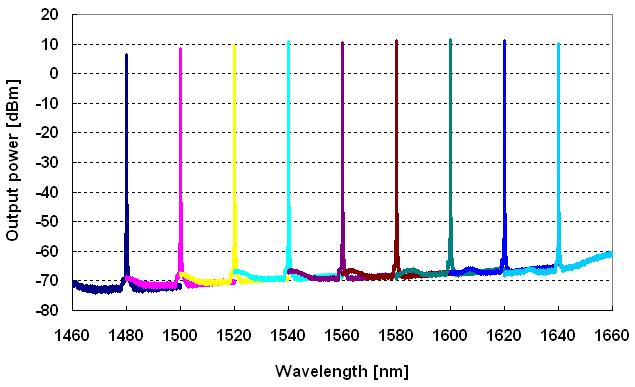

Wavelength vs. Output Power- Wide Wavelength Range -

Applications

·         Wide tuning range from 1480 to 1640 nm
If you require a different wavelength range, please refer to the TSL-550 which offers more wavelength ranges, with options from 1260 to 1680 nm.

·         High wavelength accuracy: +/- 2 pm

·         High output power: + 13 dBm

·         High signal-to-noise ratio: 90 dB/0.1 nm

·         Narrow linewidth: 100 kHz
