Nguồn sáng mô phỏng ánh sáng mặt trời 94043A, Solar Simulator, Sol3A Class AAA, IEC/JIS/ASTM, 450 W Xenon, 4 x 4 in.
Overview

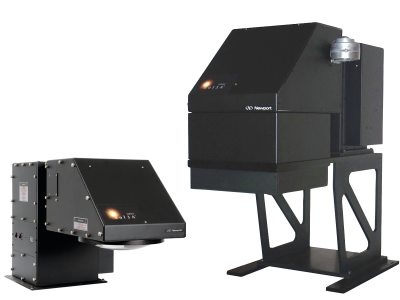

The 94043A is the Sol3A Class AAA Solar Simulator with a 450 Watt Xenon, Ozone Free source illuminated over a 4 inch x 4 inch area.
The 94043A is certified to IEC 60904-9 Edition 2 (2007), JIS 8904-9 (2017), and ASTM E927-10 (2015) standards for Spectral Match, Spatial Non-Uniformity of Irradiance, and Temporal Instability of Irradiance. This model uses a single lamp design to meet not one or two, but all three performance criteria without compromising the 1 SUN output power, providing true Class AAA performance. For more information about these solar simulator standards, please see our "Solar Simulator Standards — Definitions & Comparisons" technical note.
A variable aperture accessory, referred to as the partial sun attenuator, allows a user to vary the output irradiance level without adjusting the power supply. The range of attenuation is infinitely variable from 0.1 - 1 SUN. This integrated accessory enables easy transitioning between output illumination values without having to change lamp power settings which can shift spectral output.
The 94043A uses a black non-reflective finish to minimize stray light and incorporates captive screws for all panels requiring user access to facilitate lamp replacement, alignment, and filter changes. Safety interlocks prevent inadvertent exposure to UV light.
Installation and Training service, Field Recertification service, and Extended Warranties are available for this product. Conact Newport Sales for further information.
Technical specs
Simulator Class Class AAA Lamp Type Xenon Lamp Wattage 450 W Output Beam Size 4 x 4 in. Beam Uniformity ≤2% Beam Divergence, Half Angle <±4 ° Typical Output Power 100mW/cm2 (1 Sun)±20% Adjustable Spectral Match Classification A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927-10 2015) | Simulator Class Class AAA Lamp Type Xenon Lamp Wattage 450 W Output Beam Size 4 x 4 in. Beam Uniformity ≤2% Beam Divergence, Half Angle <±4 ° Typical Output Power 100mW/cm2 (1 Sun)±20% Adjustable Spectral Match Classification A (IEC 60904-9 2007) A (JIS 8904-9 2017) A (ASTM E927-10 2015) |
Resources & Downloads
Literature
- Oriel Sol3A Solar Simulator Datasheet (1.5 MB, PDF)
- Oriel Solar Simulator Field Recertification Service Datasheet (478.5 kB, PDF)
- EU Declaration of Conformity- Solar Simulators (1.5 MB, PDF)
2D / 3D CAD Software
Drawings And Cad
- Sol3A_94043A (196.6 kB, PDF)
Manuals
- Partial Sun Attenuator User Manual (373.6 kB, PDF)
- Oriel Sol3A Simulator User Manual (3 MB, PDF)
Application Notes
- Reliable Solar Cell Measurements - Application Note 47 (511.3 kB, PDF)
- Comparisons of IV Curves between Xenon Lamp-Based and LED-Based Solar Simulators - Application Note 56 (482.7 kB, PDF)
Technical Notes
